ARC Shaped Canopy Structure
Product Details:
- Insulation Optional PU/PIR Insulation (for enclosed type)
- Life Span 15-25 years
- Wall Materials None / Transparent Glass (Optional Side Walls)
- Door Material Not Applicable / Optional Aluminium Sliding Door, if Enclosed
- Window Material Not Applicable / Optional Glass Window, if Enclosed
- Open Style Customized Open/Open Sided/Optional Side Covering
- Dimension (L*W*H) Customizable (eg. 10m x 4m x 3m or as per requirement)
- Click to View more
X
ARC Shaped Canopy Structure Product Specifications
- White / Grey / Blue / Customized
- 15-25 years
- Not Applicable / Optional Glass Window, if Enclosed
- 8 Degree
- Structural Steel Frame (Mild Steel/Aluminium), Hot Dip Galvanized for Corrosion Resistance
- Customized Open/Open Sided/Optional Side Covering
- Customizable (eg. 10m x 4m x 3m or as per requirement)
- 0.35 kN/m
- 2.5 kN/m
- 0.5 kN/m
- High-strength Bolted Connection
- Fixed / Sliding (Optional, if Enclosed)
- Not Applicable / Optional: 50mm Glass/ACP
- Optional (If Enclosed)
- Optional (Sliding/Standard, if Enclosed)
- Optional PU/PIR Insulation (for enclosed type)
- None / Transparent Glass (Optional Side Walls)
- Polycarbonate Sheets / Steel Sheets / Fabric Membrane (Customized Option)
- Outdoor Shelter, Car Parking Shade, Walkway Canopy, Entrance Cover
- Not Applicable / Optional Aluminium Sliding Door, if Enclosed
- Galvanized Steel, Optional: PVC Flooring
- Integrated LED/Provision for Custom Lights
- 100% Size, Material & Color Customisation Available
- Yes, As Per International Building Code
- Yes, for Polycarbonate/Fabric Options
- Designed for up to 150 km/h (customizable for local codes)
- Multi-Purpose Outdoor Protection
- Low Maintenance, Weather Resistant
- Pre-fabricated, Modular, Site Assembly
- Integrated Gutter and Downspout System
- Powder Coated / Hot Dip Galvanized
- Anchor Bolts to Concrete Footing
- Arc Shaped/Curved/Barrel Vaulted
Product Description
Vijayshree Steel Industries is a big name which deals in the fabrication of heavy ARC Shaped Canopy Structure. It is especially designed to build large warehouses, service centers and other industrial units. Top grade structural members are used for the fabrication that are made up of heavy duty alloyed materials that makes them capable to resist harsh weather conditions. It can be customized into different sizes that can be customized according to customer demands. The structural members of the ARC Shaped Canopy Structure are fixed by using highly tensile mechanical members which ensures higher stability and rigidness.
ARC SHAPED CANOPY STRUCTURESPACE-FRAMED CANOPY STRUCTURE
- Canopies are cantilever roof systems from side and end wall below the eve of the building provides various functions
- Extended covering to prevent entering rain water in door and roll up shutters opening areas.
- To provide shade and block direct sun light falling on the openings
- A cover at the entrance of the building or for car & truck packing adjutant to building the wall.

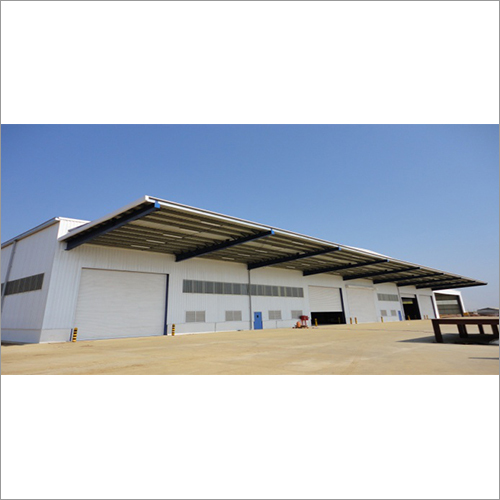

The standard VSI canopy consist of the built-up tapered rafter, cantilevered (Max 6m) from main frame column or from end wall column. Rafter supports cold form purlins which in turn support roof panel soffit panel. The canopy may extend along the full or partial length or door opening of the side wall.
Normally canopies are supplied with roof panels that match the panel of the main building where there are attached. Liner panel at the underside of the canopy purlins and flashings are used where neat and elegant flush appearance is required.
FASCIAS: When fascia is incorporated in a pre-engineered steel building it enhances the appearances of a building and transforms it from an ordinary looking shed into an attractive building. Looks do matter, right?
STANDARD FASCIAS
- Parapet fascia; The parapet fascias are extensions of building walls in such a way to cover the triangular shape gable wall, eve end gutter, wall and project a rectangular solid flat roof appearance.
- Vertical fascia: Vertical fascia is most commonly used facia. It projects from the building and give image of strength bold bulky appearance and smoother liner edges. This fascia will be provided with soffit to get neat flush finish, the standard projection of fascia is 600mm, wider projection is also common and the height is variable and is determined mainly by roof slope from eave line to the ridge line.
- Curved fascia: Due to its rounded sculptured corner and edges project a smooth and tranquil appearance.
Innovative and Resilient Design
The ARC Shaped Canopy Structure stands out with its graceful curves and robust construction, blending aesthetics with strength. Engineered for high wind resistance and earthquake resilience (8-degree intensity), the structure employs a high-strength bolted connection system that ensures long-term stability. Its weather-resistant, powder-coated or galvanized finish supports use in diverse climates.
Complete Customization for Your Space
Tailor every aspect of your canopy, from size and material to color and floor type. Whether you need a simple open-sided shelter or a fully enclosed structure with sliding aluminum doors and insulated panels, every component-including roof, walls, and lighting-can be adjusted to your project requirements. Optional add-ons such as PVC flooring and fixed/sliding windows are available upon request.
Low Maintenance, High Performance
Designed for minimal upkeep, the canopy's corrosion-resistant structure, integrated drainage system, and durable surface treatments make long-term ownership worry-free. Fire-resistant materials, UV protection for roofing, and provisions for LED or custom lighting ensure safety, comfort, and usability throughout the year.
FAQ's of ARC Shaped Canopy Structure:
Q: How is the ARC Shaped Canopy Structure installed?
A: The structure is pre-fabricated and modular, allowing for efficient site assembly. It is anchored securely to concrete footings using high-strength bolts, which ensures stability and longevity even in challenging weather conditions.Q: What applications can this canopy structure be used for?
A: This canopy is suitable for various outdoor uses, including car parking shades, walkways, entrance covers, and general outdoor shelter. Its customizable design allows it to serve both residential and commercial projects.Q: When should I consider customizing the size or material of my canopy?
A: Customization is recommended when you have specific space requirements, unique design preferences, or particular performance needs such as higher wind load resistance or specialized color accents. The structure supports 100% customization to meet your exact needs.Q: Where can the ARC Shaped Canopy Structure be installed?
A: The canopy can be installed in any outdoor setting requiring durable weather protection. It is commonly used in residential driveways, commercial complexes, public walkways, and institutional entrances across India and internationally.Q: What benefits does the integrated drainage and lighting system provide?
A: Integrated gutters and downspouts prevent water pooling and potential damage, while LED or custom lighting ensures safety and visibility at any time of day. These enhancements combine to increase user comfort and maintain the structure's condition.Q: How does the canopy ensure occupant safety and comfort?
A: The canopy adheres to international fire codes, offers UV protection for polycarbonate or fabric roofing, and can be equipped with optional insulation and ventilation for enclosed versions, ensuring comfortable use in all seasons.Tell us about your requirement
