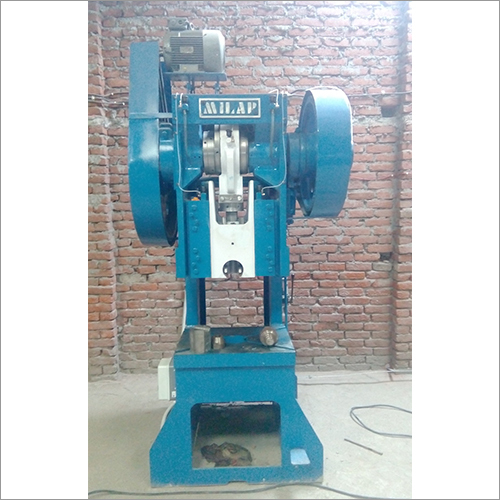

30 Ton Cap. Power Press
Product Details:
- Material Mild Steel
- Power 5 HP
- Voltage 220-440 V
- Dimension (L*W*H) 950 mm x 600 mm x 2000 mm
- Application Sheet Metal Forming, Punching, Bending, Shearing
- Accessories Electrical Starter, Hand Wheel, Flywheel Guard
- Click to View more
X
30 Ton Cap. Power Press Price And Quantity
- 450 mm
- 90 mm
- C-Type Power Press
- Heavy-Duty, Rigid Frame
- Paint Coated
- 600 mm x 350 mm
- 780 mm
- 40
- 40 mm
- 30 Ton
- 250 mm
- Mechanical, Manual
30 Ton Cap. Power Press Product Specifications
- Sheet Metal Forming, Punching, Bending, Shearing
- 950 mm x 600 mm x 2000 mm
- Electrical Starter, Hand Wheel, Flywheel Guard
- 220-440 V
- Mild Steel
- 5 HP
- 450 mm
- 90 mm
- C-Type Power Press
- Heavy-Duty, Rigid Frame
- Paint Coated
- 600 mm x 350 mm
- 780 mm
- 40
- 40 mm
- 30 Ton
- 250 mm
- Mechanical, Manual
Product Description
We are dealing in the manufacturing of high performance 30 Ton Cap. Power Press that can be used in various industrial applications such as metal deformation, punching, blanking and many more. The working mechanism is fixed with a heavy duty electrical motor which acts as a the main drive unit for the efficient movement of flywheel and vertically moving ram. 30 Ton Cap. Power Press is mounted on a robust base frame which gives higher stability and rigidness to the machinery.
Built to Last in Industrial Settings
Engineered with a heavy-duty, rigid frame and constructed from mild steel, this power press is designed for continuous operation in industrial environments. The machine's 30-ton capacity provides ample force for a wide range of metal forming applications, while its paint-coated finish resists corrosion and enhances lifespan.
Precision and Adaptability for Your Workflow
The 30 Ton Power Press features a stroke length of 90 mm, a table measuring 600 mm by 350 mm, and 40 strokes per minute, delivering repeatable accuracy and productivity. The adjustable ram and accessible hand wheel allow for precise control, accommodating diverse sheet metal thicknesses and profiles.
FAQ's of 30 Ton Cap. Power Press:
Q: How does the 30 Ton C-Type Power Press operate?
A: The power press operates mechanically, utilizing a 5 HP motor to drive the flywheel, which transfers force to the ram. It can be used manually or powered, depending on the specific application requirements.Q: What types of sheet metal processes can this power press handle?
A: This machine is designed for a variety of sheet metal forming operations including punching, bending, shearing, and other fabrication processes where up to 30 tons of pressing force is needed.Q: Where can this power press be installed and used?
A: The 30 Ton Power Press is well suited for installation in industrial workshops, manufacturing facilities, and metal fabrication units across India, thanks to its rugged construction and compatibility with standard voltage supplies (220-440 V).Q: What safety features and accessories are included with the machine?
A: Standard accessories include an electrical starter, hand wheel for manual adjustments, and a flywheel guard for operator safety during machine operation.Q: What are the benefits of the heavy-duty, rigid frame design?
A: The rigid frame minimizes vibrations and ensures consistent performance, which results in precise metal forming and increased operator safety during prolonged use.Q: How do I adjust the ram and stroke settings?
A: The ram has an adjustable length of 40 mm, allowing for fine-tuning depending on the thickness of the material and the required depth of operation. Adjustments are made manually using the hand wheel provided with the machine.Tell us about your requirement
